Alpha Series 520
- Model: Alpha-520
- Brand: AKO
- Port: Shanghai/Shenzhen/Ningbo
- Quantity: Negotiable
Alpha-520
Alpha-520 blank die-cutting non-stop winding all-in-one machine is a professional die-cutting equipment for blank labels developed on the basis of absorbing foreign advanced technology experience and combining our core technology. The whole machine adopts a 5-roller double-station die-cutting structure with hydraulic pressure. Die-cutting is combined with automatic non-stop winding device, which has advanced functions, easy operation, greatly reduces labor intensity, and improves production efficiency. It is the best choice for blank die-cut label production.

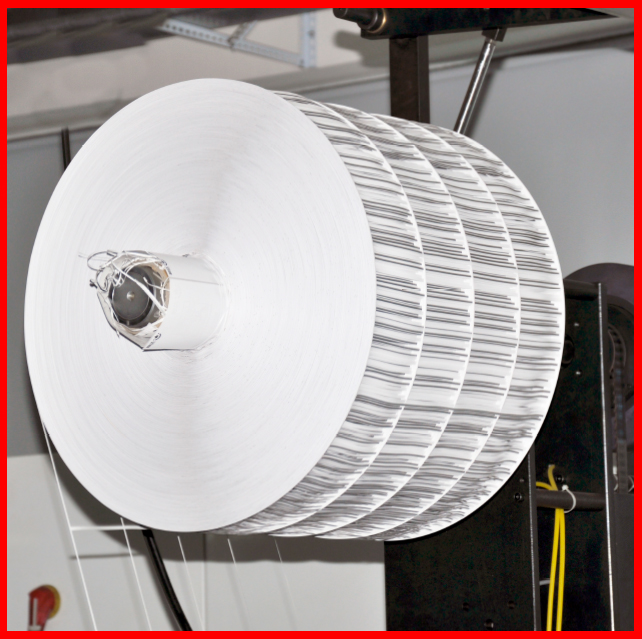

Unwind
Magnetic powder closed-loop tension control system; hydraulic lifting system, easy to operate.
Waste rewind
The structure of magnetic powder clutch or blade is easy to discharge waste and not easy to break, which reduces the waste of downtime caused by broken waste and improves production efficiency.
Flexo unit
Instant printing technology, "X" structure, keep the printing pressure consistent all the time, you can change the printing by changing the perimeter of different printing plates, no need to adjust the pressure.
Horizontal die cutting
Drawer-type die-cutting roller structure, no need to use a crane device, easy to replace.
Winding
Non-stop winding, saving labor and improving production efficiency. And you can choose the self-adhesive labeling and sealing device at the end of the paper roll.
Folding
Non-stop folding, saving labor and improving production efficiency. And you can choose the self-adhesive labeling and sealing device at the end of the paper roll.
- Flexible conversion from 20um film to 300g cardboard
- With drawer structure, the cutter roller can be replaced quickly, and the operation is easy.
- Hydraulic pressure application, digital pressure display, high stability, easy to remember and repeat operations. (CLTS*)
- Modular design, flexo color group can be added to realize simple printing and die-cutting machine.
- A self-adhesive labeling and sealing device at the tail of the paper roll can be purchased.
Product performance and features:
| Maximum paper width | 530mm | Gearing | 1/8”（3.175mm) |
| Maximum printing width | 520mm | Motorization | Servomotor |
| Maximum unwind diameter | 1000mm | Air-pressure | 100PSI（7BAR） |
| Maximum rewind diameter | 600mm/min | Lubrication | Automatic |
| Repeat printing | 203~610mm | Material | Film, paper, label material |
| Repeat die cutting | 279~476mm | Max mechanical speed | 200m/min |
